Detay Bilgi

Model:	BXT-DSF600	Algılama matrisi:	Demir bazlı, bakır bazlı, alüminyum bazlı, naylon bazlı, kobalt bazlı, magnezyum bazlı, titanyum baz
Test Süresi:	Örnek türüne bağlı olarak, genellikle 25 saniye	Optik sistem:	Paschen-Runge Rowland Circle tam spektrumlu optik sistem
Dalga boyu aralığı:	160-800nm	odak uzaklığı:	300 mm
Dedektör:	Yüksek çözünürlüklü çoklu CMOS görüntü sensörü	Elektrot:	Tungsten jet elektrot
Vurgulamak:	Full Spectrum Alloy Analysis Spectrometer , Alloy analysis Direct Reading Spectrometer

Ürün Açıklaması

Full-spectrum direct reading spectrometer

The full-spectrum direct reading spectrometer adopts international standard design and manufacturing techniques, and utilizes fully digital technology to replace the cumbersome photomultiplier tube (PMT) analog technology. It is in sync with international spectrometer technology and features a digital excitation light source, an international-level detector, and a high-speed data reading system, enabling the instrument to possess high performance, low detection limit, long-term stability, and repeatability.
The spectrometer is one of the preferred devices for quality monitoring, material type identification, material research and development in the metal manufacturing, processing, and metallurgy industries.

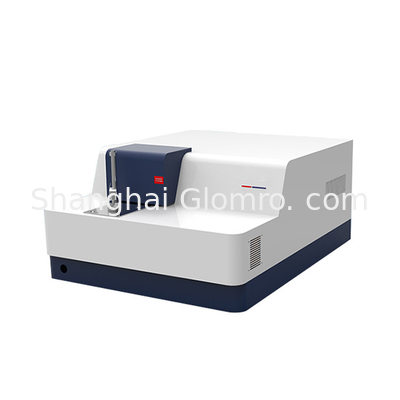

Full-spectrum Alloy Analysis Direct Reading Spectrometer Emission Spectrometer 0

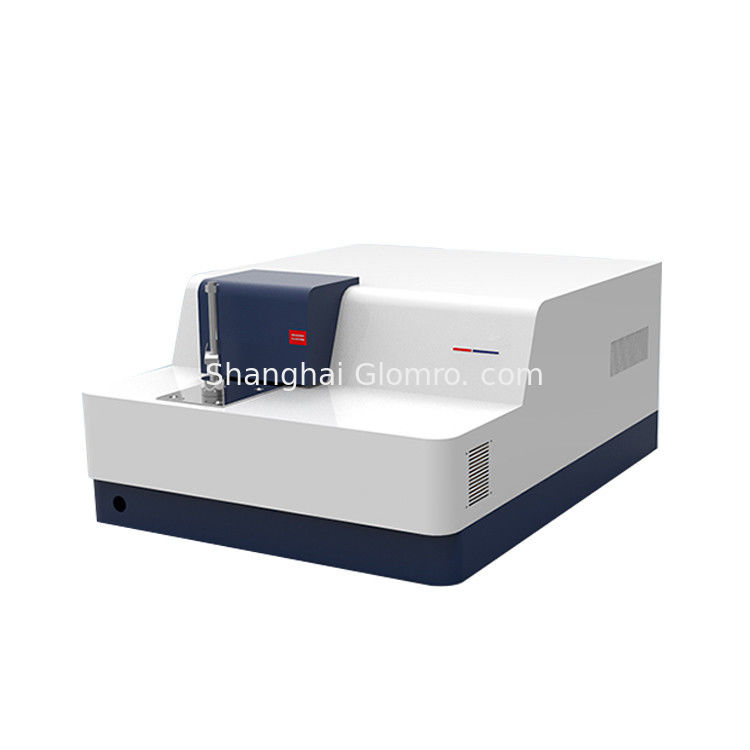

Full-spectrum Alloy Analysis Direct Reading Spectrometer Emission Spectrometer 1

Full-spectrum Alloy Analysis Direct Reading Spectrometer Emission Spectrometer 2

Technical Specifications

Model	BXT-DSF600	BXT-DSF900
Detection Matrix	Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc.	Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc.
Testing time	Depending on the type of sample, it is generally around 25 seconds	Depending on the type of sample, it is generally around 25 seconds
Optical system	Paschen-Runge Rowland Circle Full-Spectrum Optical System	Paschen-Runge Rowland Circle Full-Spectrum Optical System
Wavelength range	160-800nm	130-800nm
Focal length	300mm	400mm
Detector	High-resolution multi-CMOS image sensor	International-level detector module, high-performance linear CCD
Electrode	Tungsten Jet Electrode	Tungsten Jet Electrode
Analysis Gap	Sample table analysis gap:3. 5mm	Sample table analysis gap:3.5mm
Working temperature	(10-35)℃	(10-35)℃
Storage temperature	(0-45)℃	(0-45)℃
Work humidity	20%-80%	20%-80%
Purity requirements for argon gas	99.999%	99.999%
Argon gas inlet pressure	0.5MPa	0.5MPa
In an argon flow	Excitation flow rate is approximately 3. 5L/min	Excitation flow rate is approximately 3.5L/min
Light source type	Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS)	Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS)
Discharge frequency	100-1000 Hz	100-1000 Hz
Discharge current	Max 380A	Max 380A
Excitation Stage Aperture	13mm	13mm
Vacuum system	Vacuum system	Vacuum system
Working power supply	220V AC,50/60Hz,Protective grounded single-phase power supply	220VAC,50/60Hz,Protective grounded single-phase power supply
Instrument size	720X560X370mm	860x660x360mm
Instrument weight	65kg	80kg

Full-spectrum Alloy Analysis Direct Reading Spectrometer Emission Spectrometer 3

Full-spectrum Alloy Analysis Direct Reading Spectrometer Emission Spectrometer 4

Packing & Delivery

Full-spectrum Alloy Analysis Direct Reading Spectrometer Emission Spectrometer 5

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese

Etiket:

Menşe yeri:	Çin
Marka adı:	BAXIT
Model numarası:	BXT-DSF600/BXT-DSF900

Min sipariş miktarı:	1
Fiyat:	US$17,805-18,780/unit
Ambalaj bilgileri:	Karton Kutu / Ahşap Kutu
Teslim süresi:	5-8 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	10000 adet
